Terrace enclosure BERGEN
Terrace enclosure
BERGEN

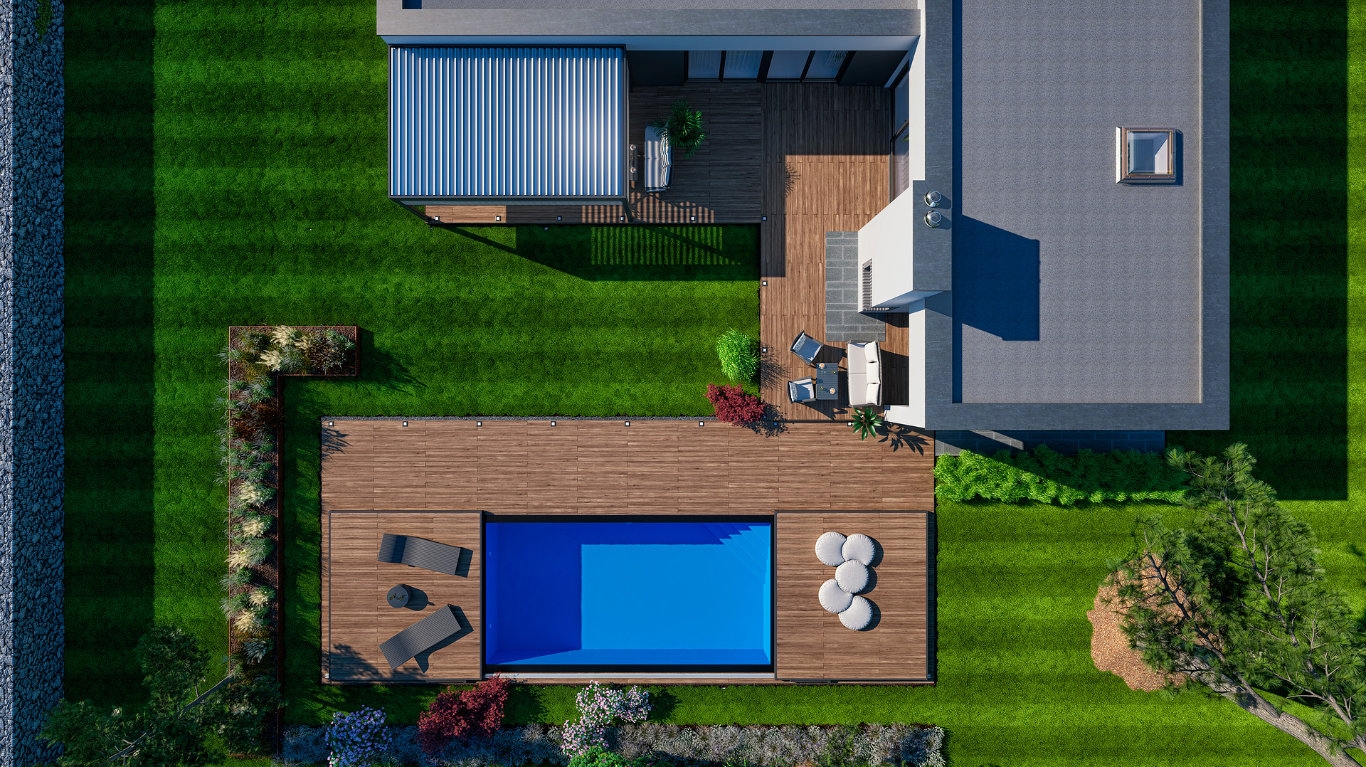

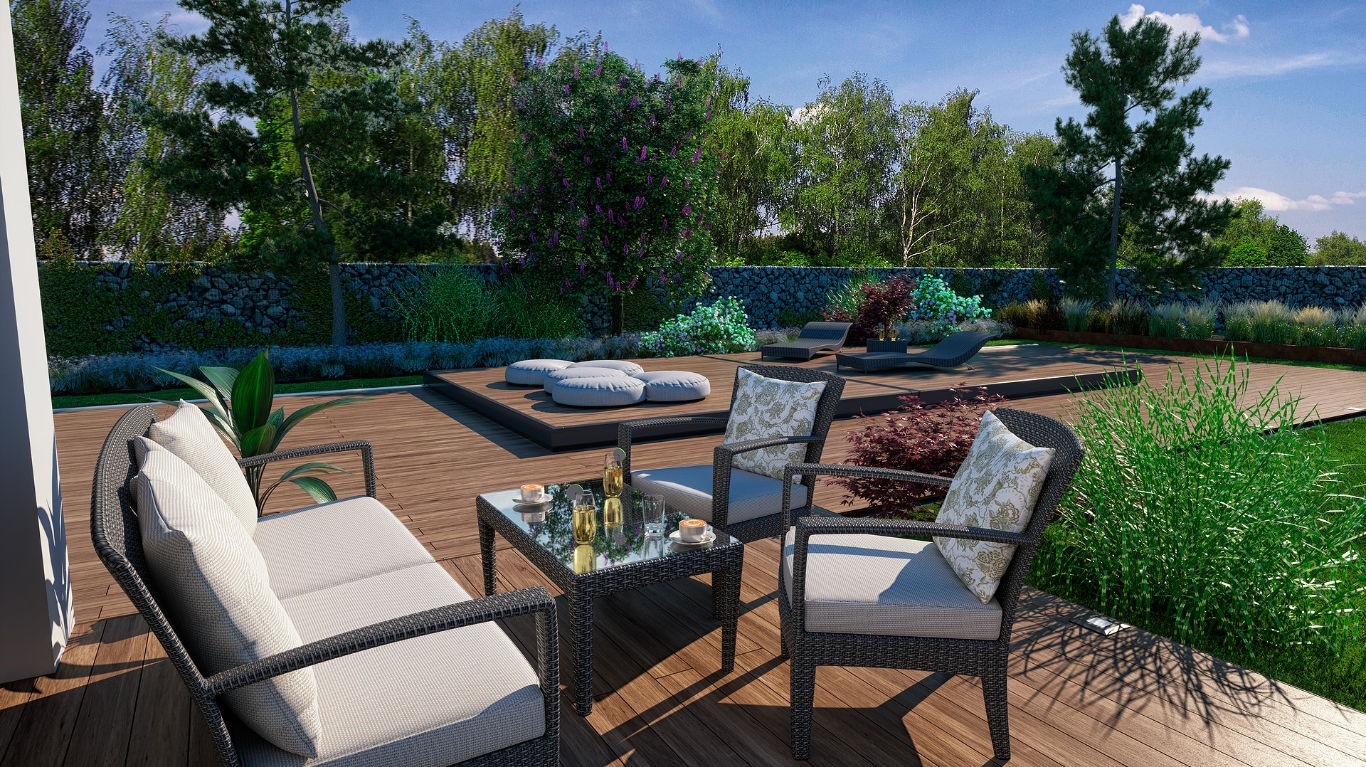

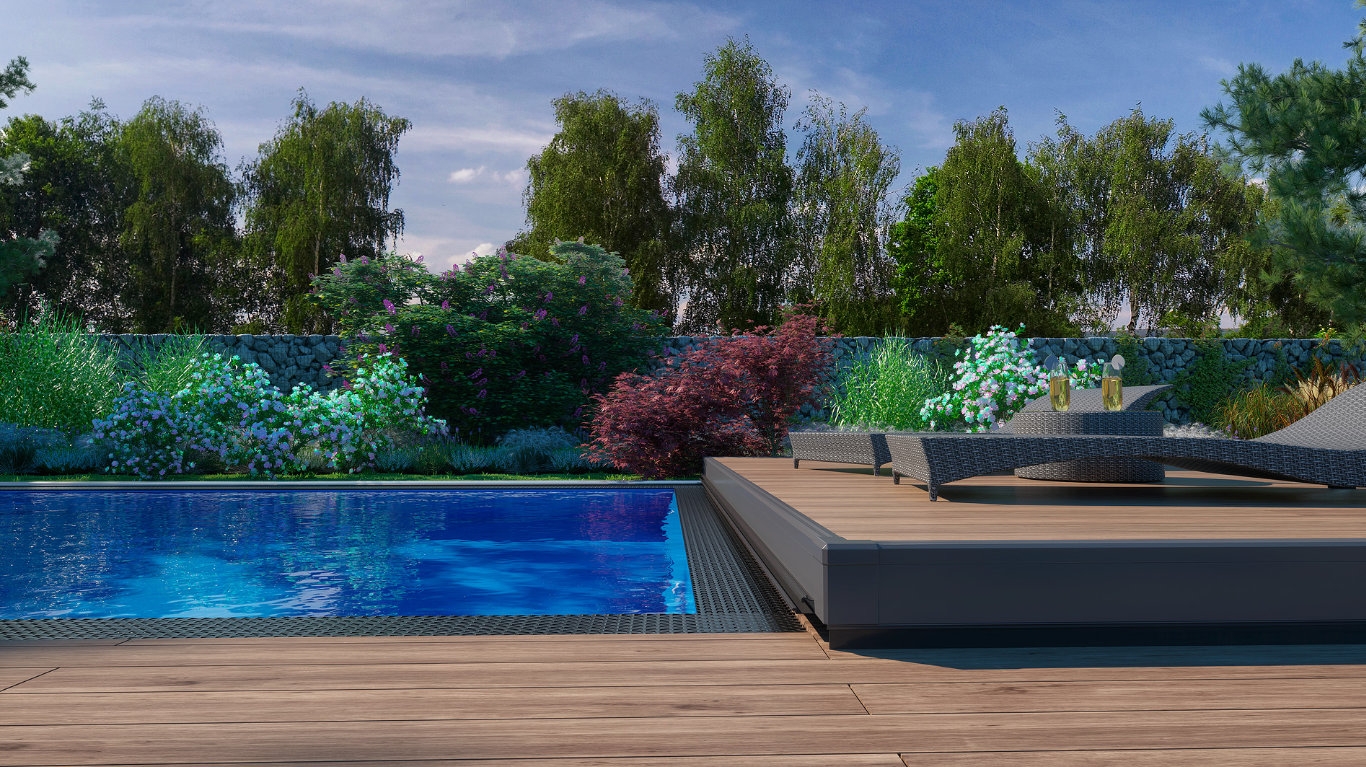

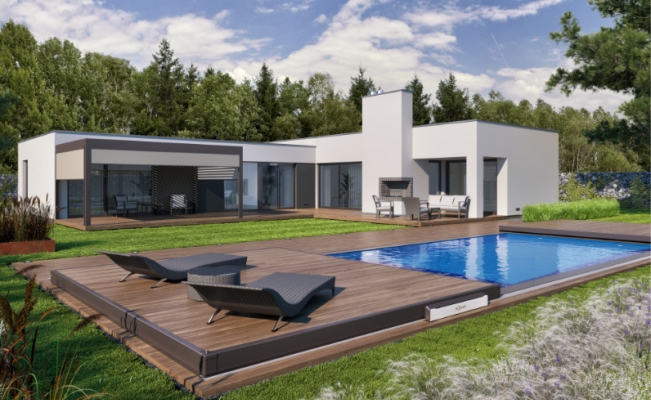

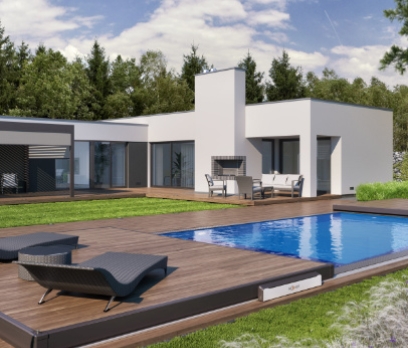

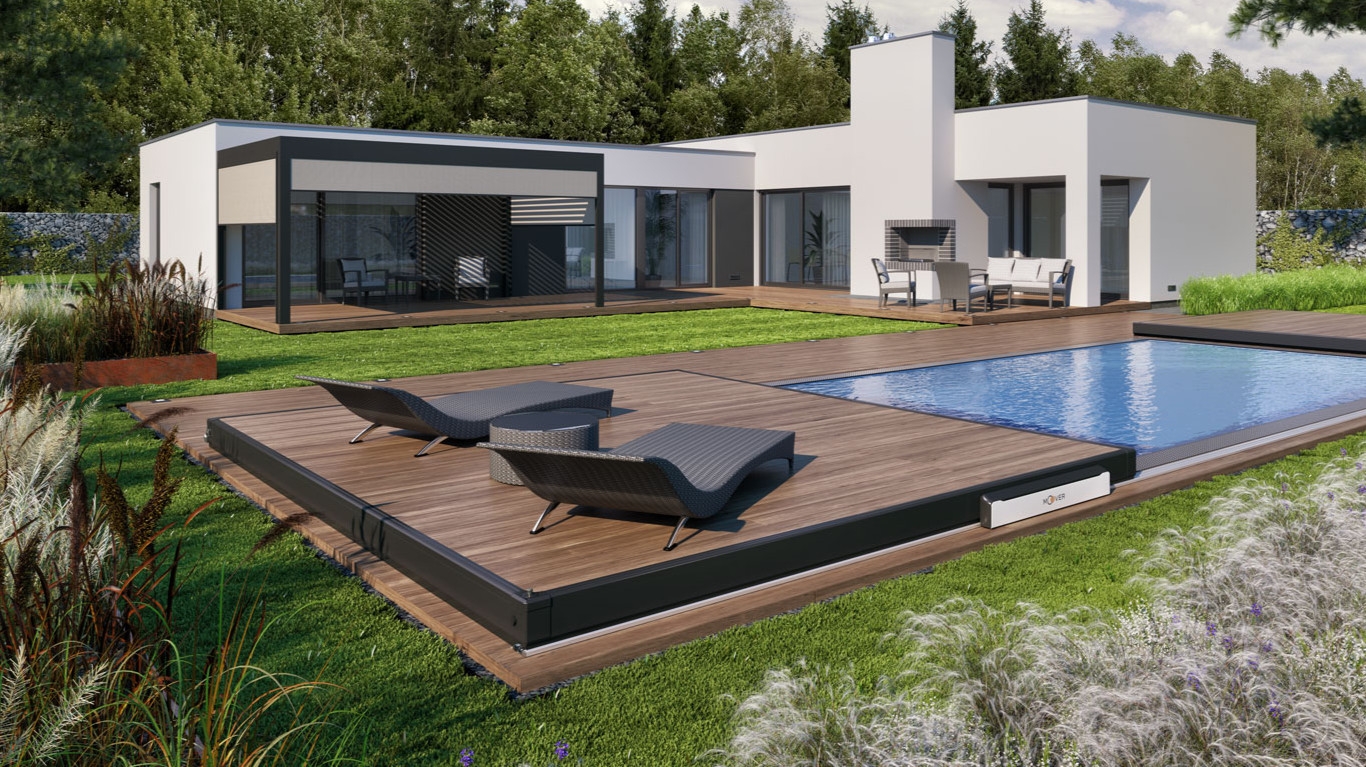

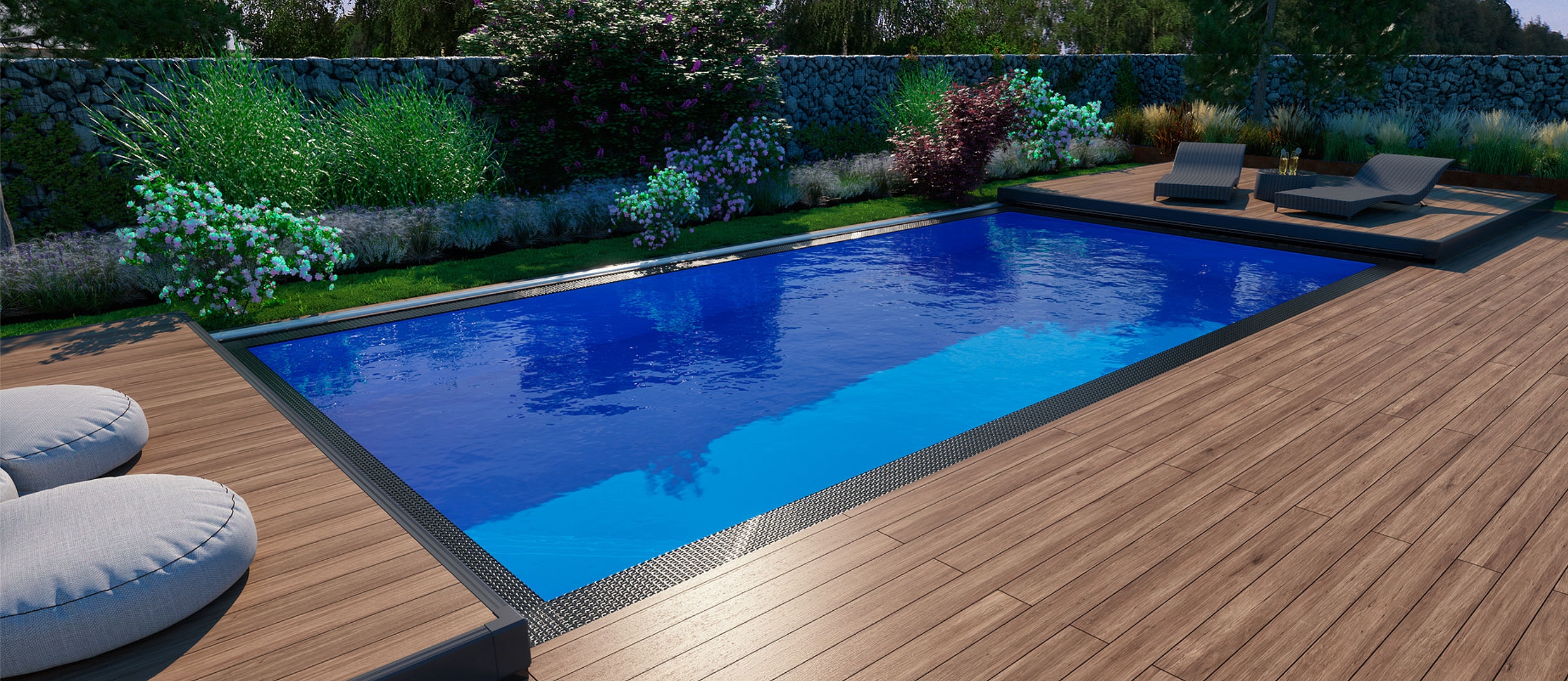

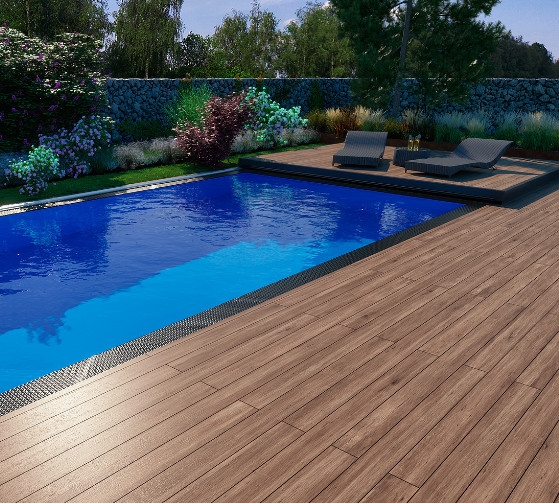

We are delighted to introduce a fully-fledged mobile terrace that not only covers your pool, but thanks to its high rigidity and load-bearing capacity, also creates additional possibilities for activities and relaxation, thus allowing the full use of your garden all year
round.
SWIM BY DAY, DANCE BY NIGHT!
High standard already in the basic model
- high load capacity and rigidity
- fulfils the requirements for snow zone 5
- minimalist design – single-track design
- height variability
- possibility of using custom coverings with different thicknesses
- lockable stoppers
• 2-in-1 – pool cover and a terrace you can walk on
• for pools up to 3 x 6 meters
• high load capacity (250 kg/m2) and rigidity thanks to ALBIXON's specially developed aluminium profiles covered by an industrial protection
• minimalistlockable blocking device protected by a utility model

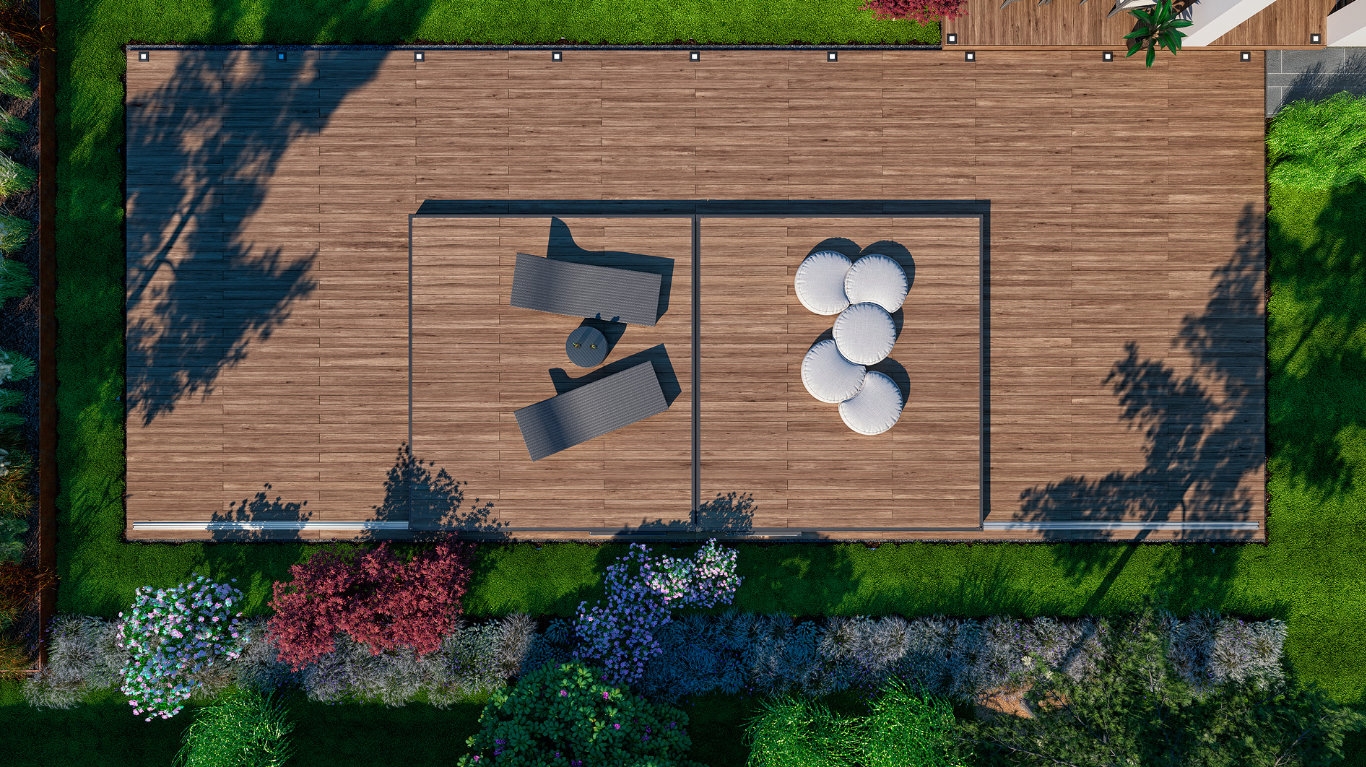

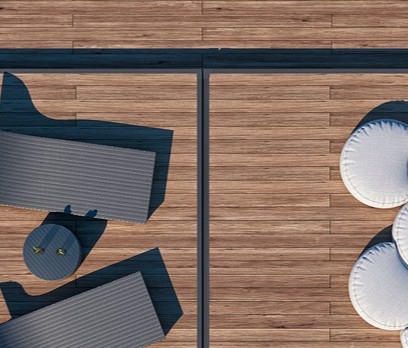

• by connecting the modules, the enclosure turns into one multi-purpose compact surface

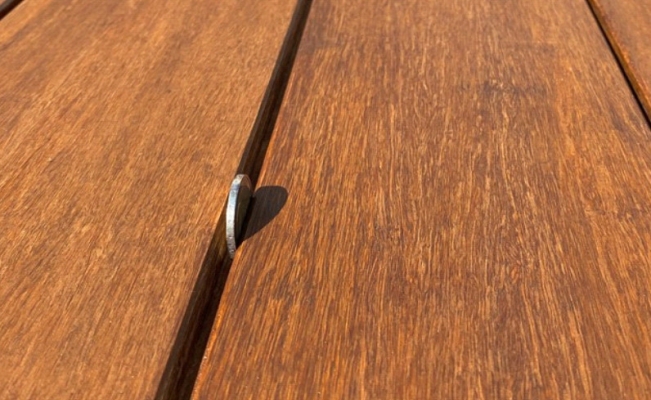

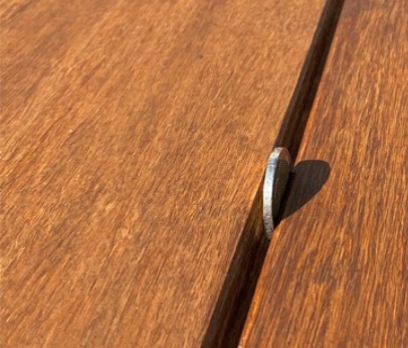

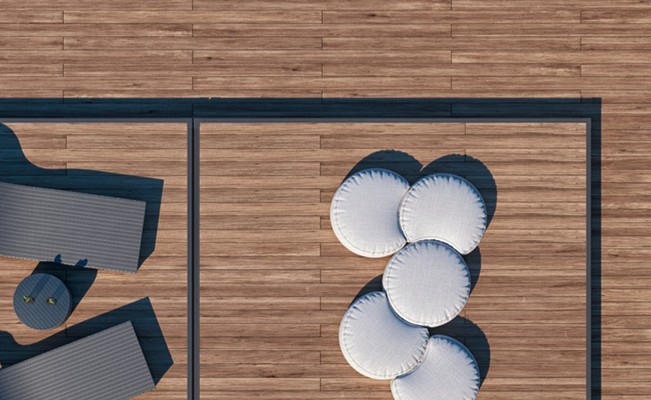

• the individual floor planks transform the floor into a uniform surface without visible gaps – valuables will not fall through the gaps, dirt will not fall into the pool
• high quality WPC boards made from bamboo (60%), HDPE (30%) and additives (10%) from the renowned Spanish brand EXTERPARK

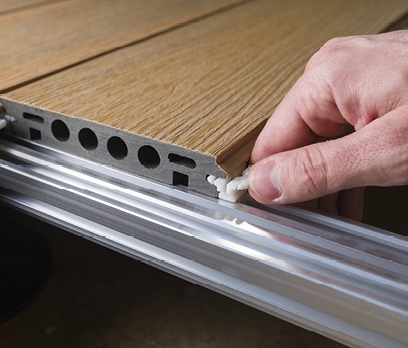

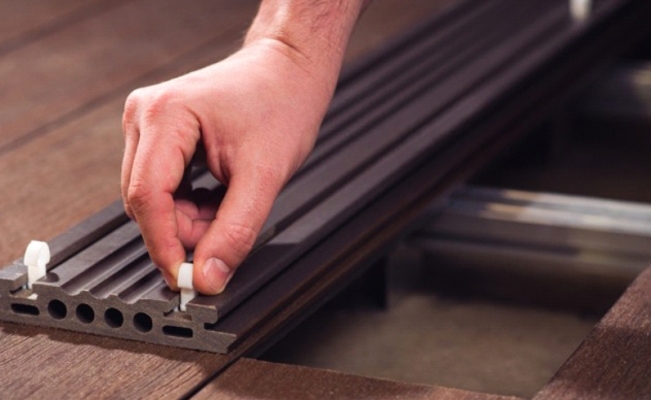

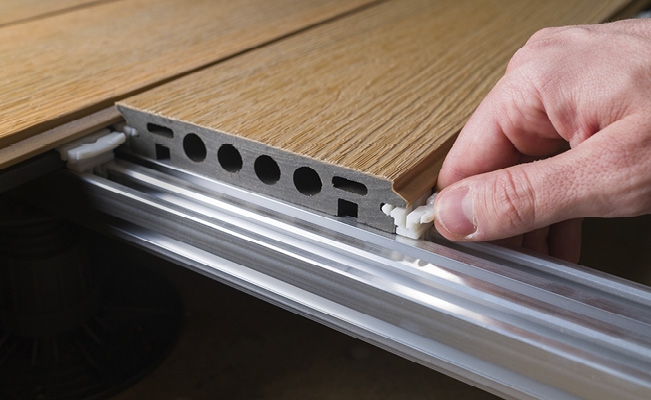

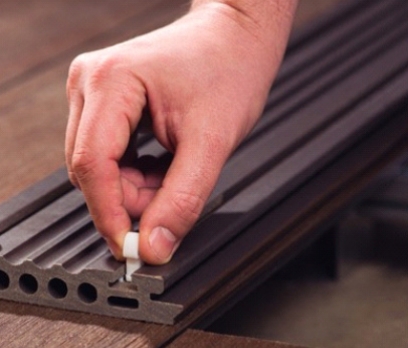

• fast and easy board installation without the need of screws, patented invisible board attachment, easy access for repairs
• the durability of the boards has been proved over the years by installations on terraces and poolsides, even in extreme stress and climatic conditions

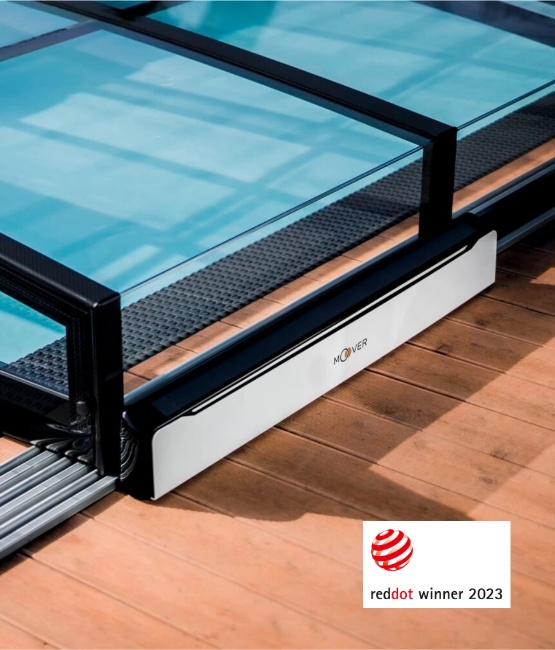

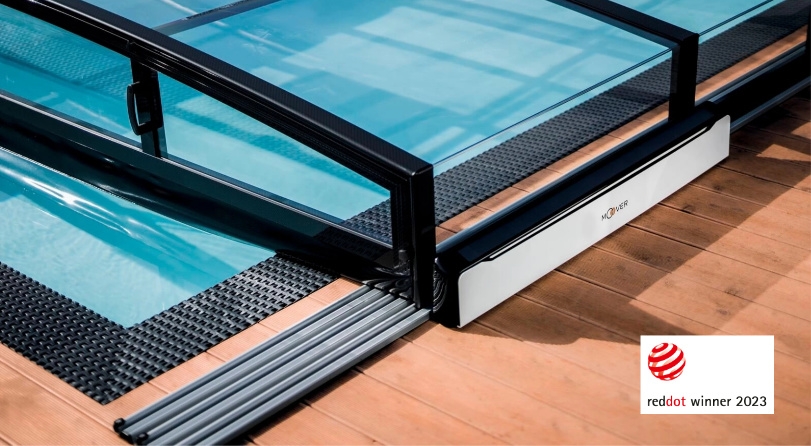

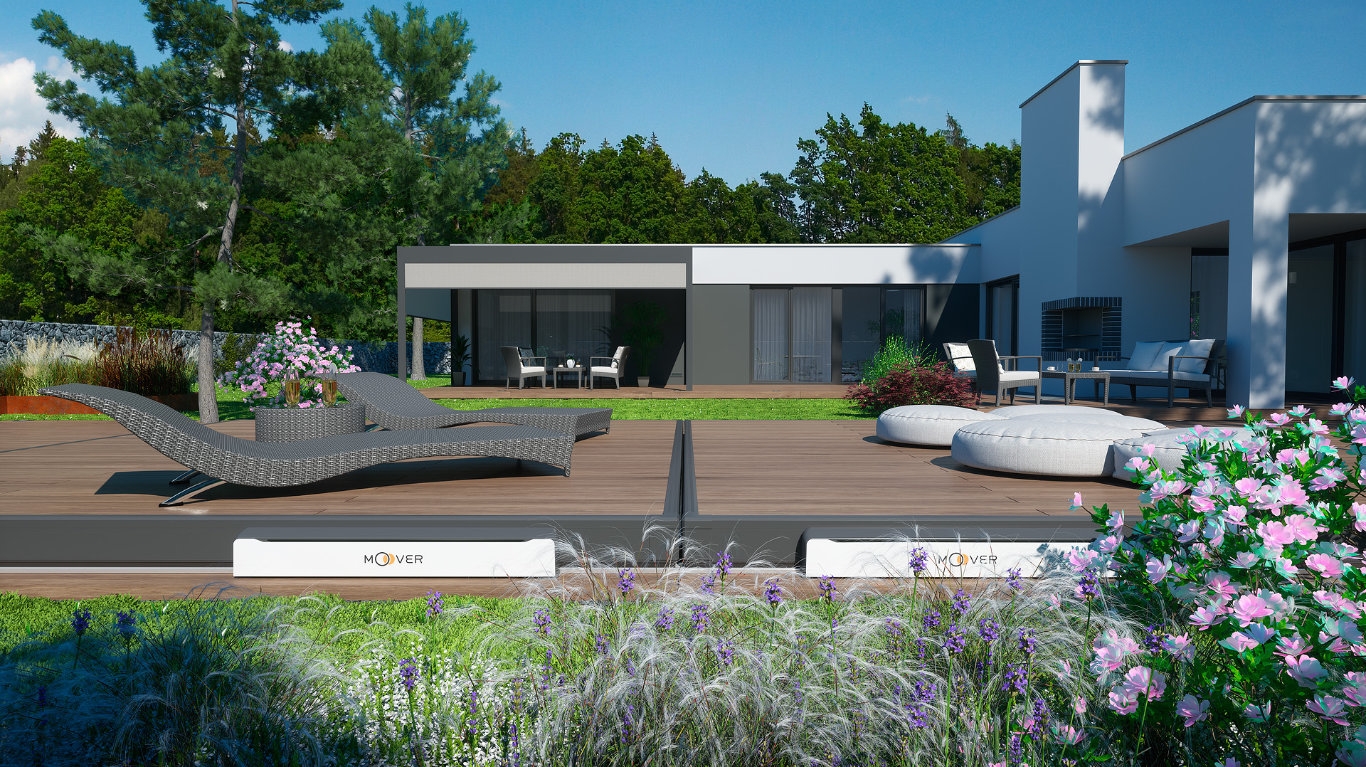

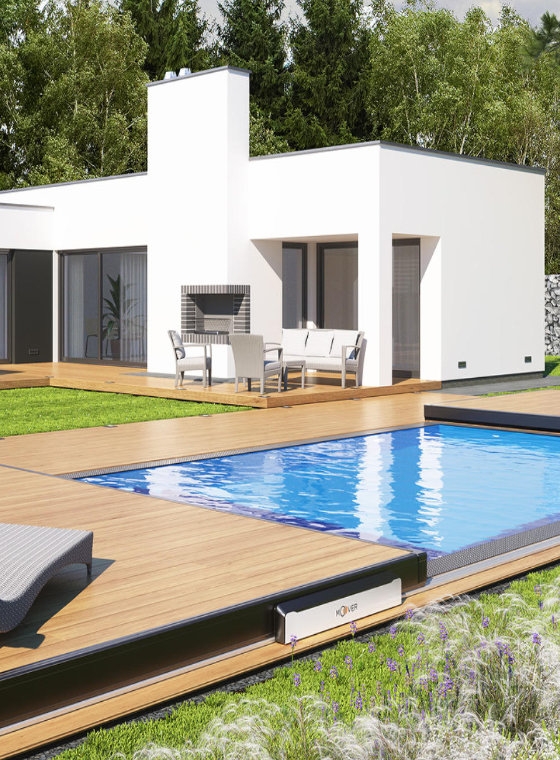

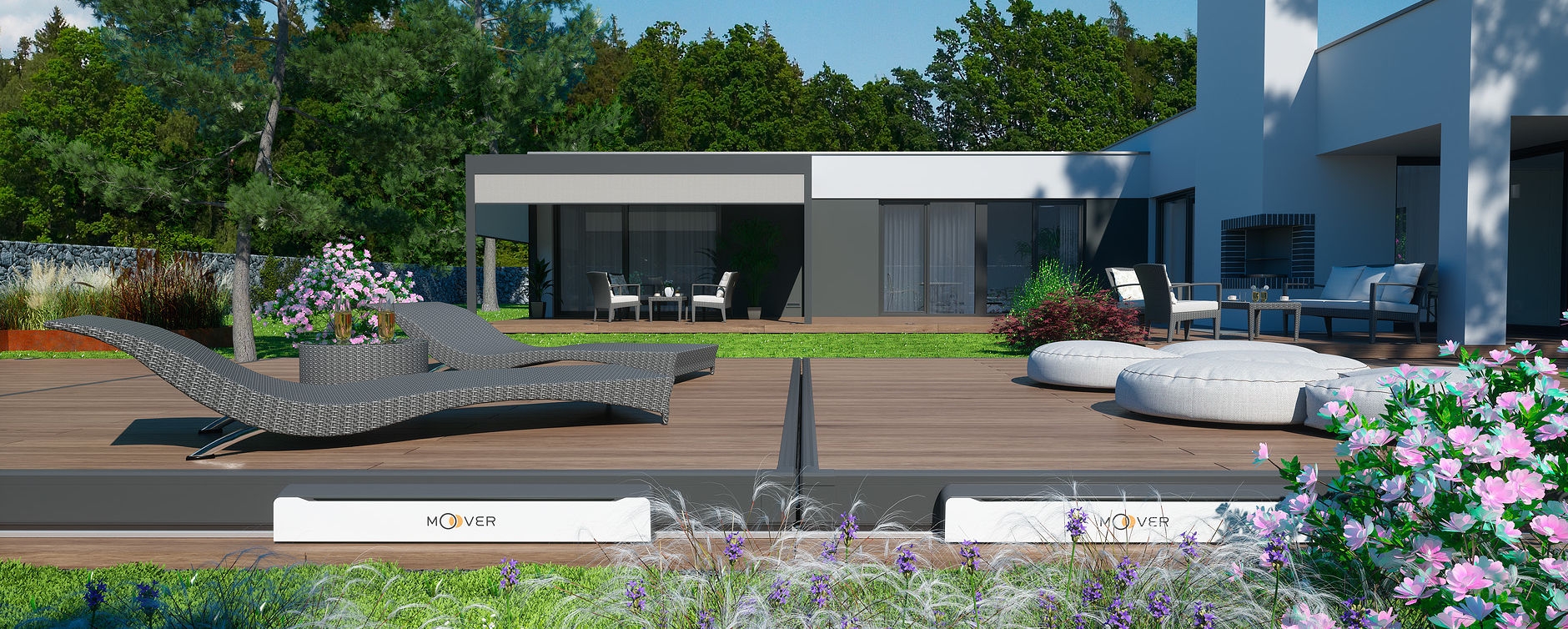

• option of moving manually or remotely using a MOOVER electric drive
• unique fit with the surrounding area owing to its natural appearance
• wpc boards and components are available to purchase individually to install on existing or new terraces to maintain the desing throughout the surrounding areas and around the pool
BERGEN - TECHNICAL PARAMETERS
| Maximum enclosed area | 3 420 × 6 420 mm |
| Number of modules | 2 |
| External width | 3 668 mm |
| External length | 6 540 mm |
| Standard height | 165 mm |
| Standard height above ground * | 10 mm |
| Max. height above ground * | 45 mm |
| Module panels | EXTERPARK WPC boards |
| Standard board colour | Teka |
| Optional board colour | Ipe, Sand, Crema, Nieve, Plata |
| Thickness of optional boards | 20 - 30 mm |
| Supporting profiles | ALBIXON BERGEN |
| Rail | Single-sided rail, walkable surface |
| Module blocking device | Lockable |
| Profile colour | Anthracit DB 703 |
| Handle | Included (use optional) |
| Load capacity per m2 | 250 kg/m2 |
| Accessories (optional) | 50mm polystyrene insulation, higher wheels to raise by 35 mm |
* indicates height of unevenness (e.g. decorative trim) that the enclosure can easily cover
