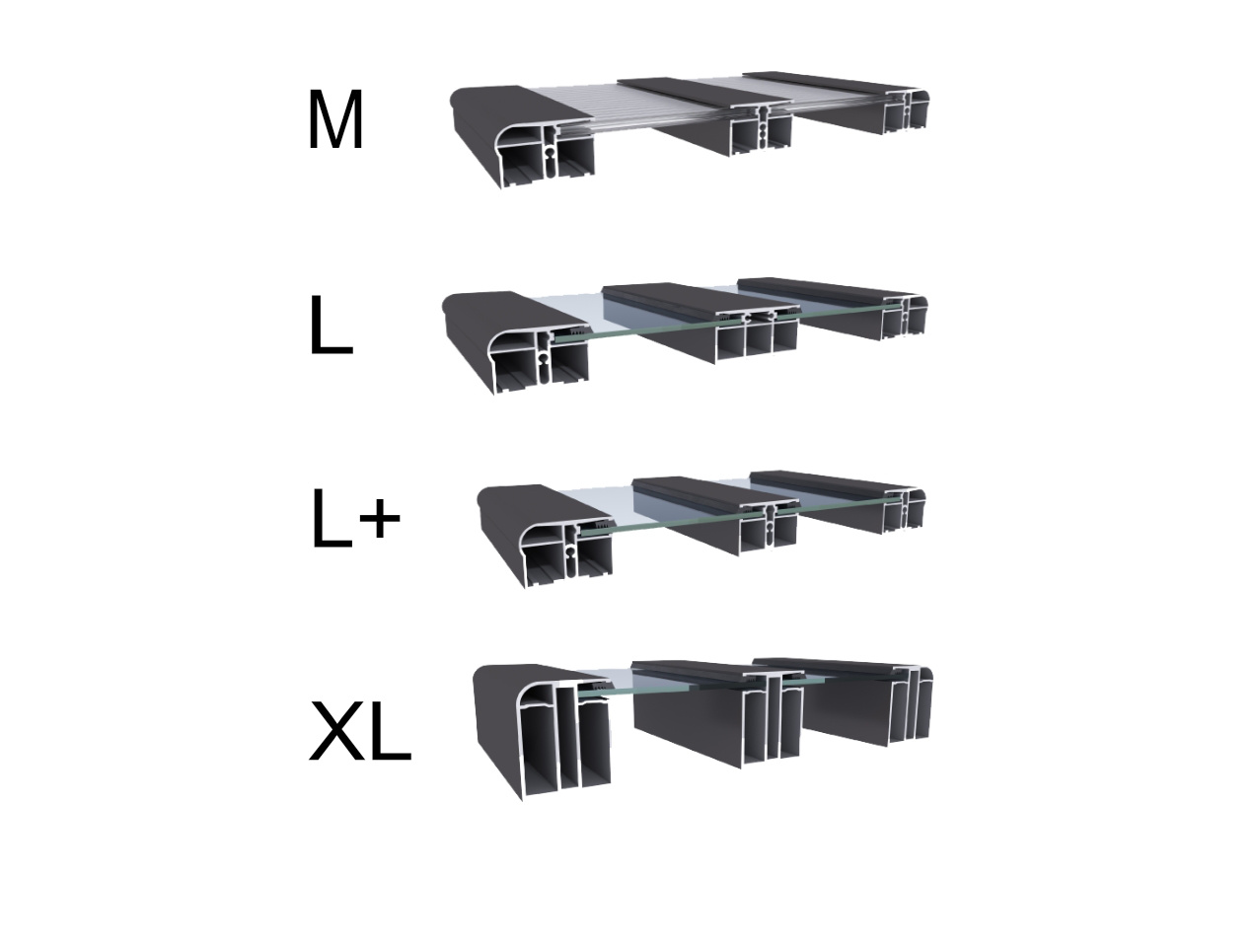

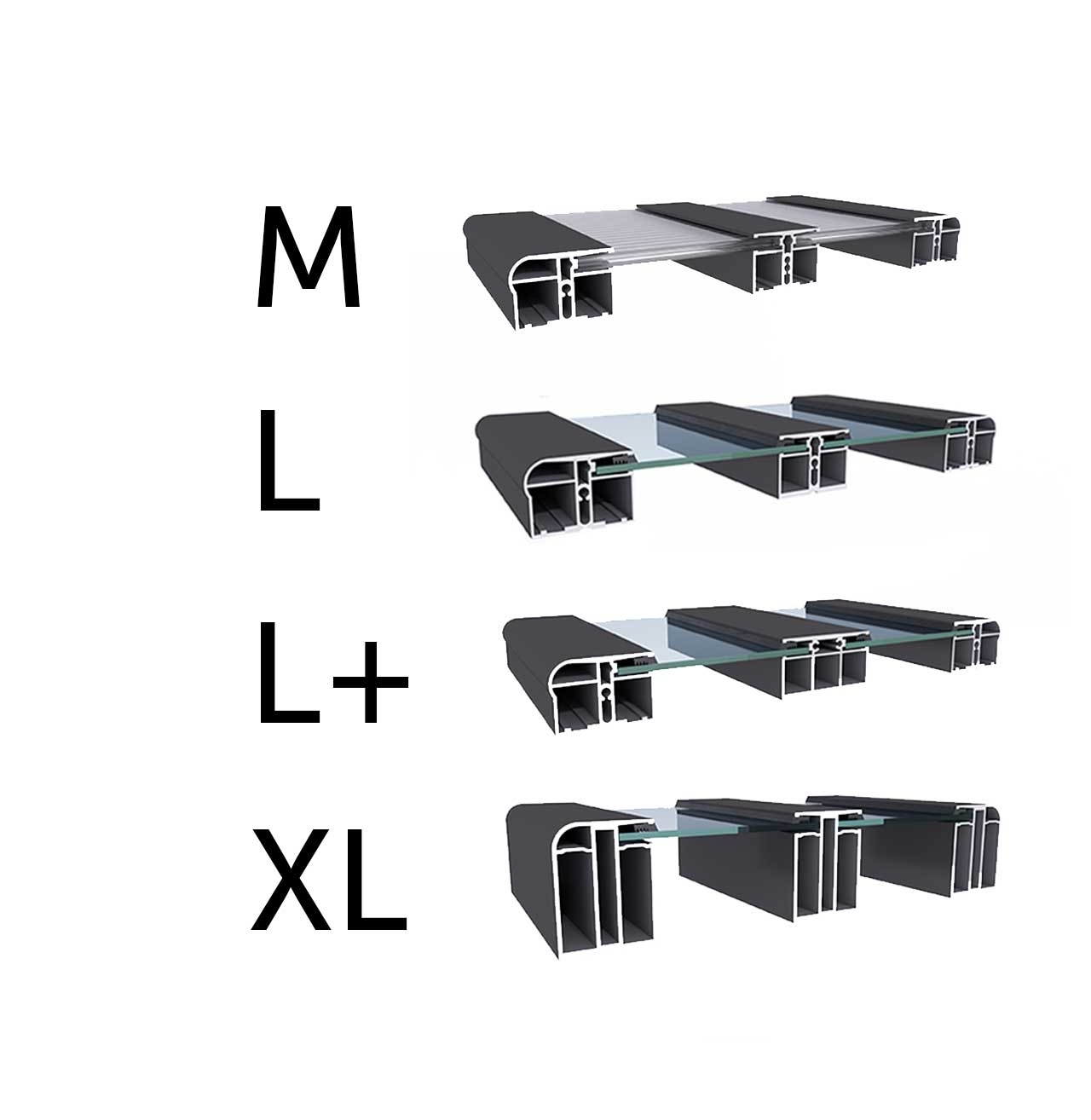

Supporting profiles
M profiles
These are profiles for small and medium enclosures. Elegantly rounded and firm inside and out.
Cross-section 40 × 55 mm (1’4’’ × 1’10’’).
L profiles
They are suitable for medium-sized enclosures. They have the same appearance as M profiles, but their structure is reinforced.
Cross-section 40 × 55 mm (1’4’’ × 1’10’’).
L+ profiles
Profiles for large enclosures. The middle profile is larger compared to the L series.
Cross-section 40 × 55 mm and 40 × 72 mm.
(1’4’’ × 1’10’’ and 1’4’’ × 2’4’’)
XL profiles
This profile series is designed for the largest enclosures, where there is an emphasis on uncompromising durability.
Cross-section 73 × 55 mm (2’5’’ × 1’10’’).
Rails

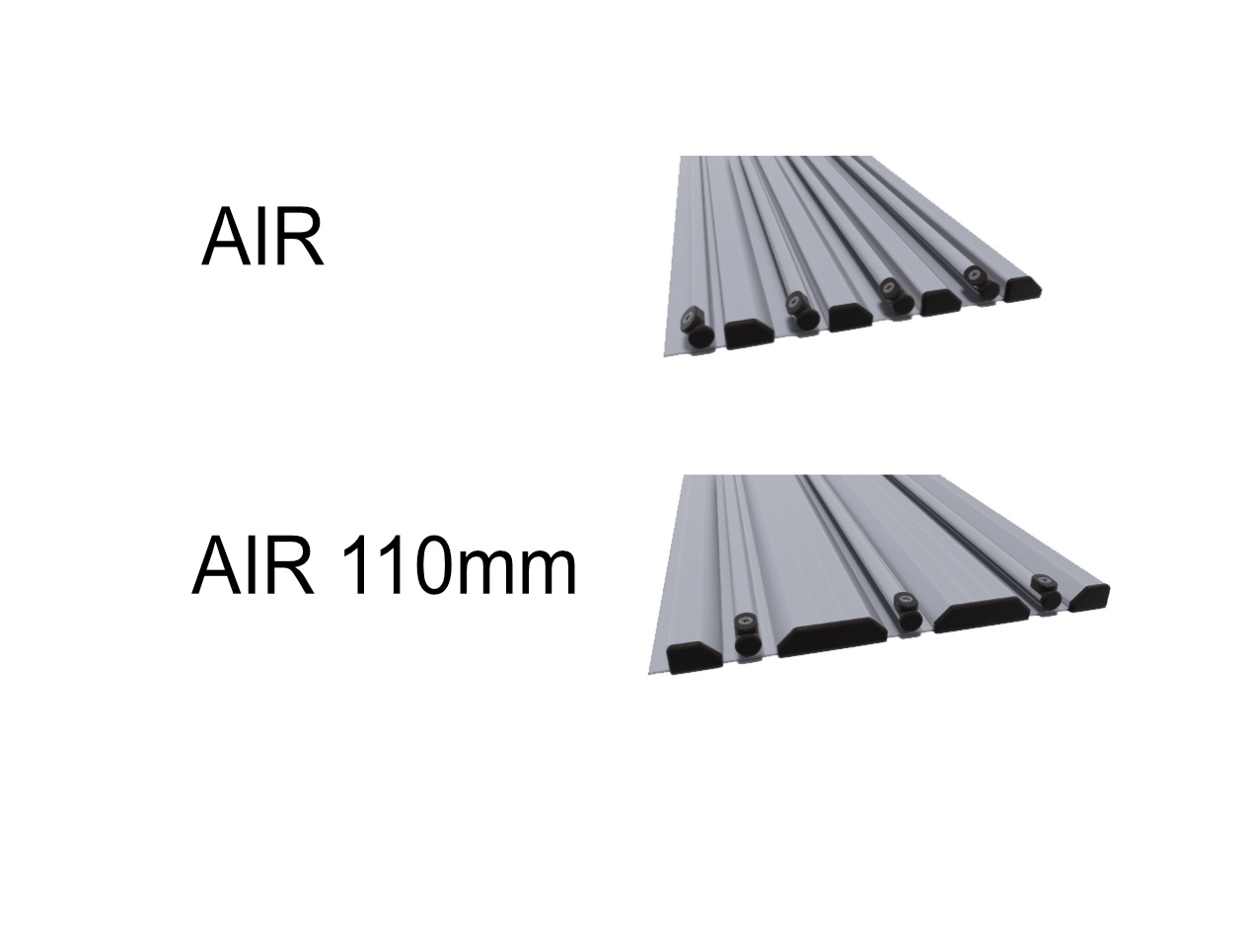

AIR rails
They are suitable for enclosures made from M, L, and L+ profiles. The rails are manufactured in such a way that the anchor bolts are not visible. We offer a version for
enclosures with a low and high impact angle.
Height 20 mm, pitch 70 mm (0’8’’ × 2’4’’).
AIR rails 110 mm (3‘7‘‘)
AIR rails specifically designed for the CASABLANCA enclosure with XL profiles.
Height 20 mm, pitch 110 mm (0’8’’ × 3’7’’).

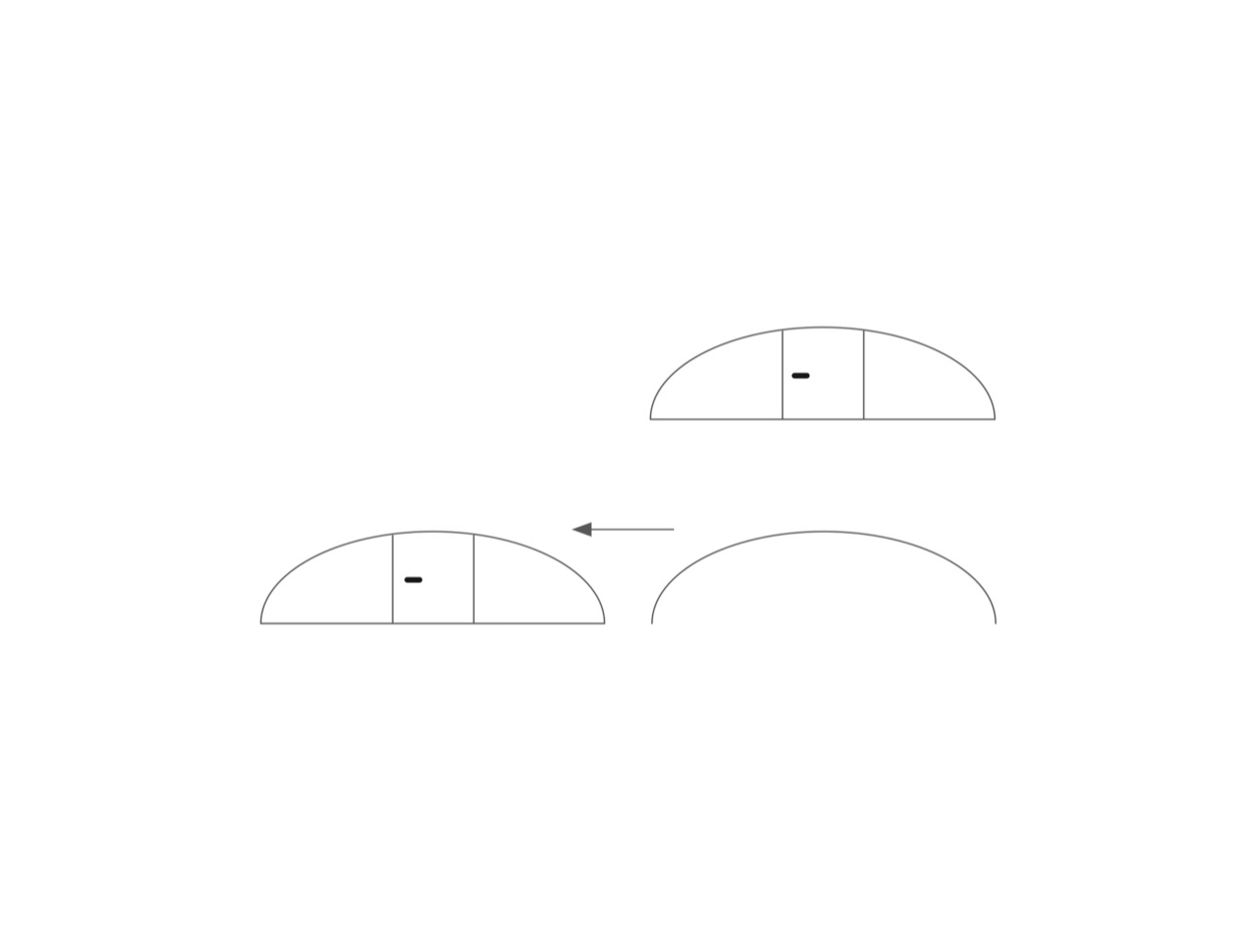

Front and back panels
- Fixed
- Removable
The front and back panels of the enclosure can be fixed permanently with screws or kept removable using a panel screw. We recommend removable panels when the enclosure cannot be fully opened out of the swimming pool area and you commonly swim under. The removable panel can be fitted with lockable panel screws. Depending on the size, the panel can be made as a single piece or in multiple pieces.

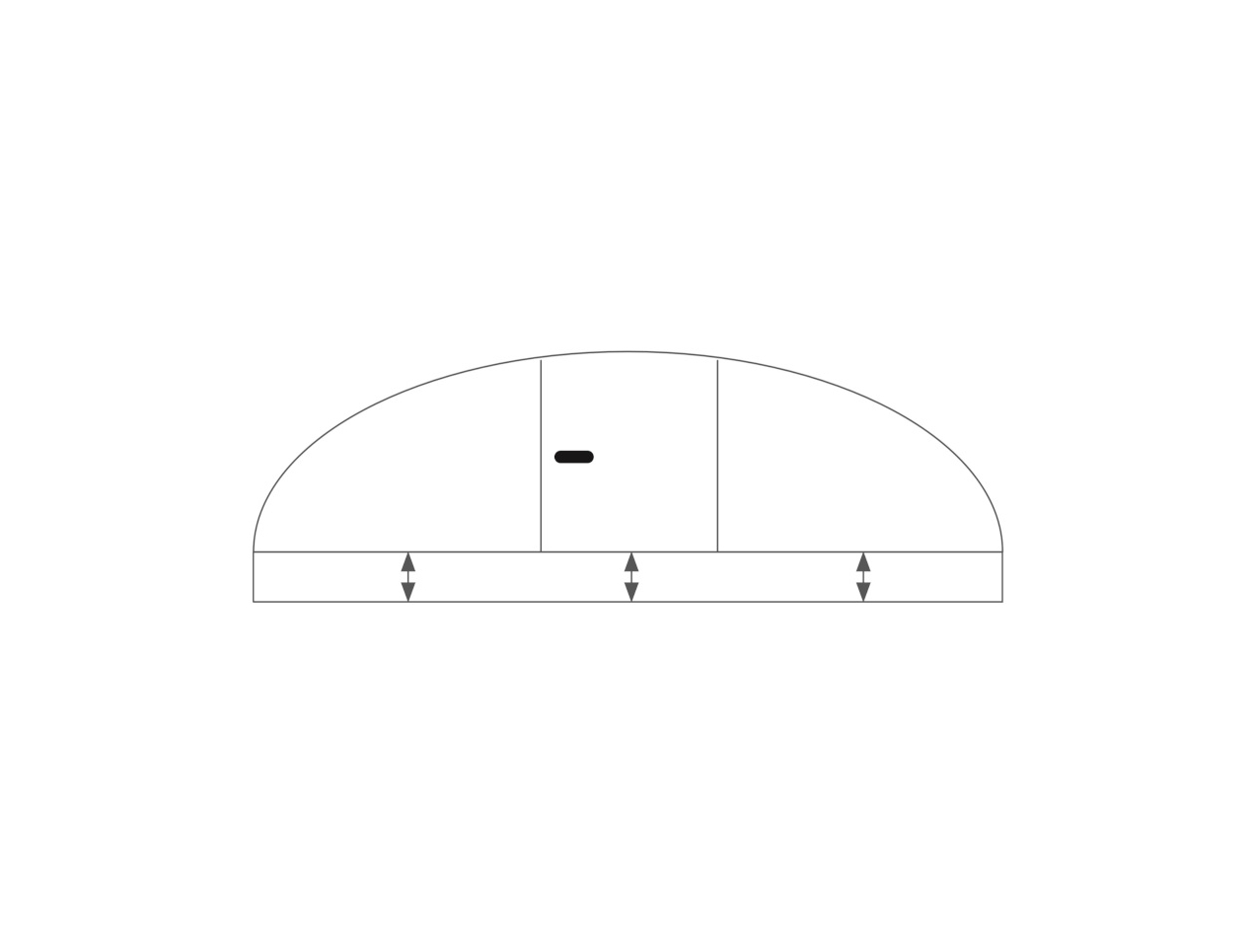

Raised bottom panel edges
This detail facilitates smooth movement of the enclosure for example over an elevated pool border. We offer an elevation of the bottom panel edge, covered by a durable
canvas, up to 15 cm (0‘6‘‘). If the elevation is higher, the sealing of the enclosure will be impaired.

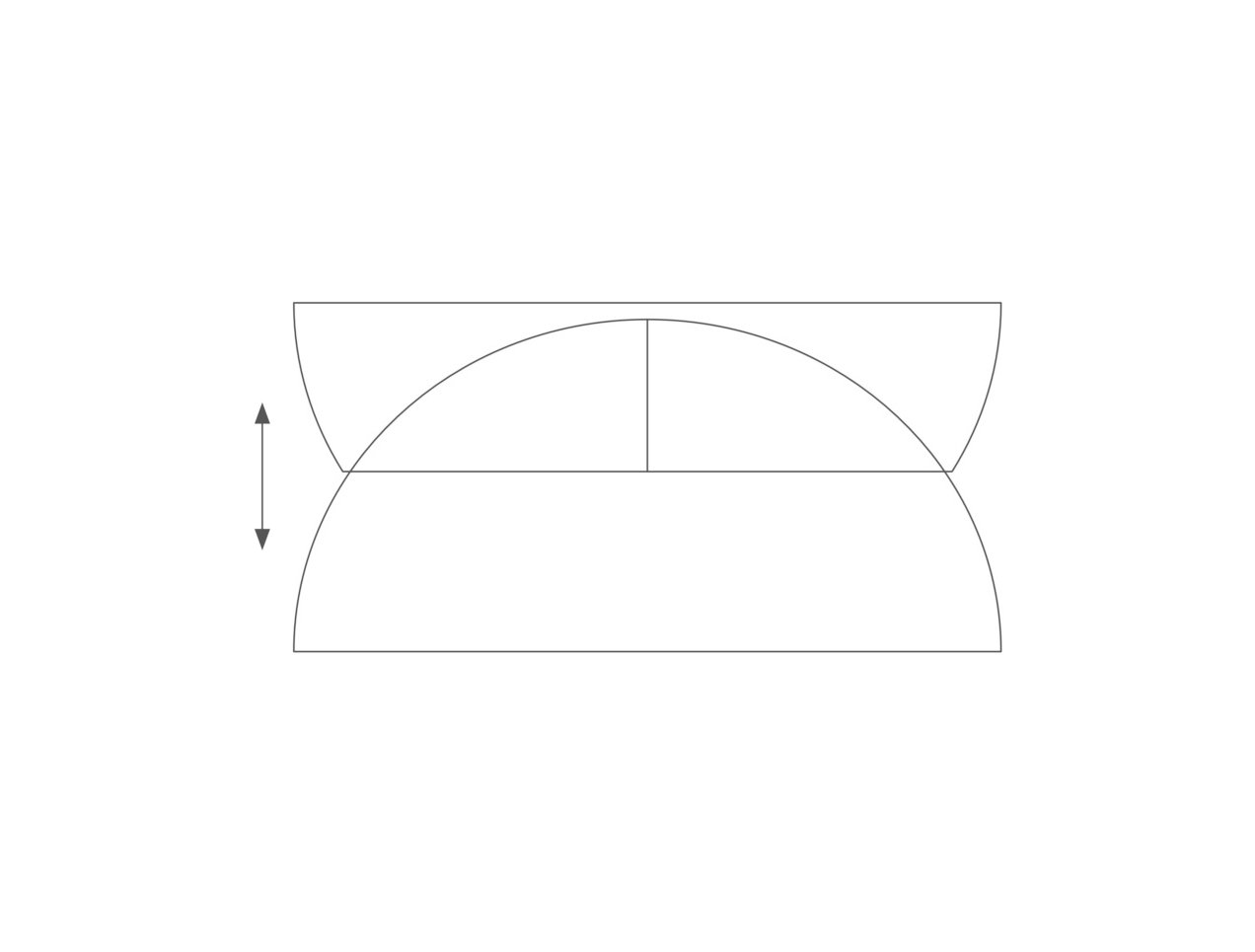

Clapper
The lower part of the front panel is opened upwards for unobstructed movement of the enclosure over obstacles, such as a ladder or a spring-board. The maximum clapper height is up to half the height of the front/back panel. ATTENTION! There can‘t be any door in the panel in combination with a clapper. We always recommend consulting the manufacturer on the use of a clapper.

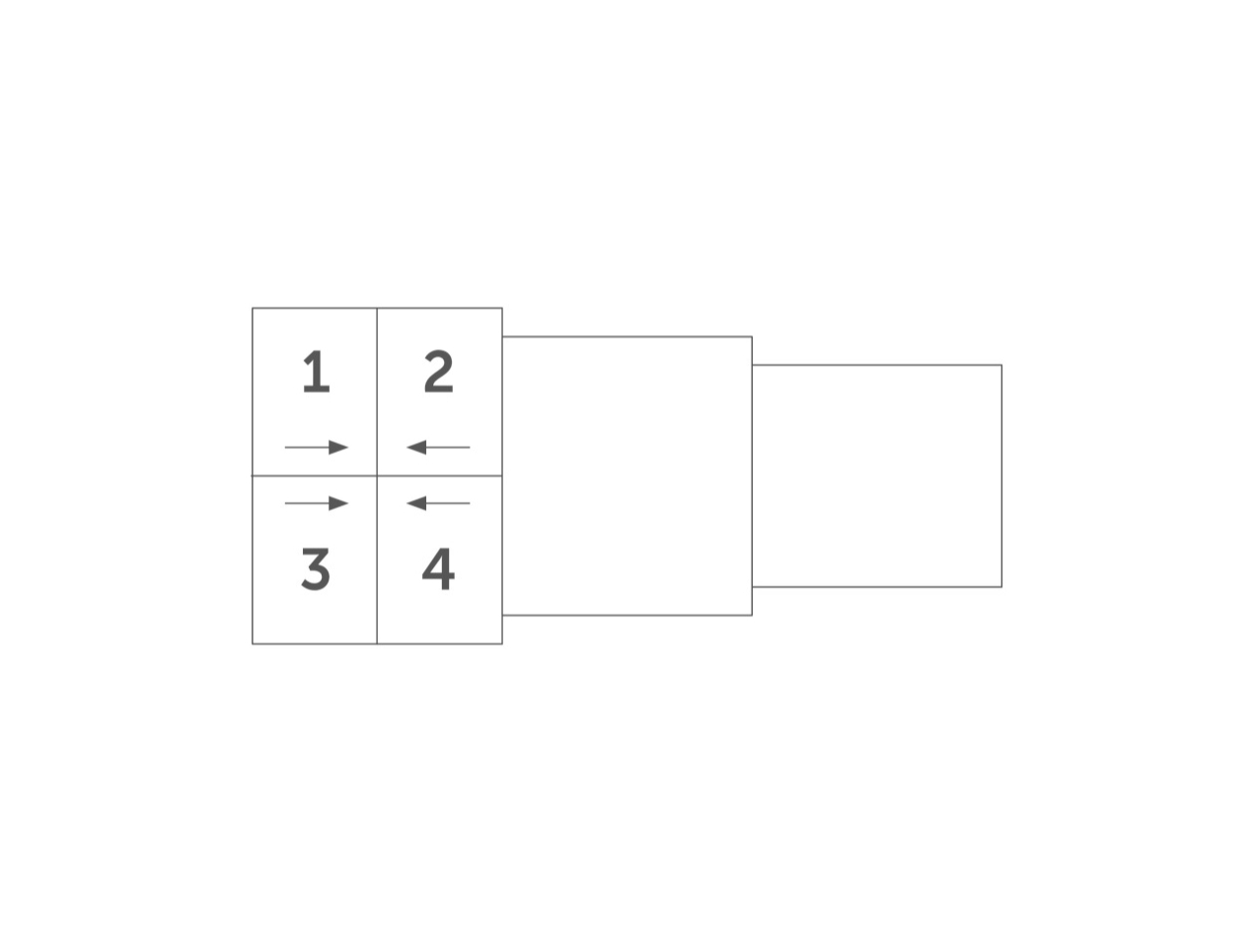

Side entrance
It is usually located on the biggest module. It can be placed in 4 module quadrants The side entrance is lockable, of course.

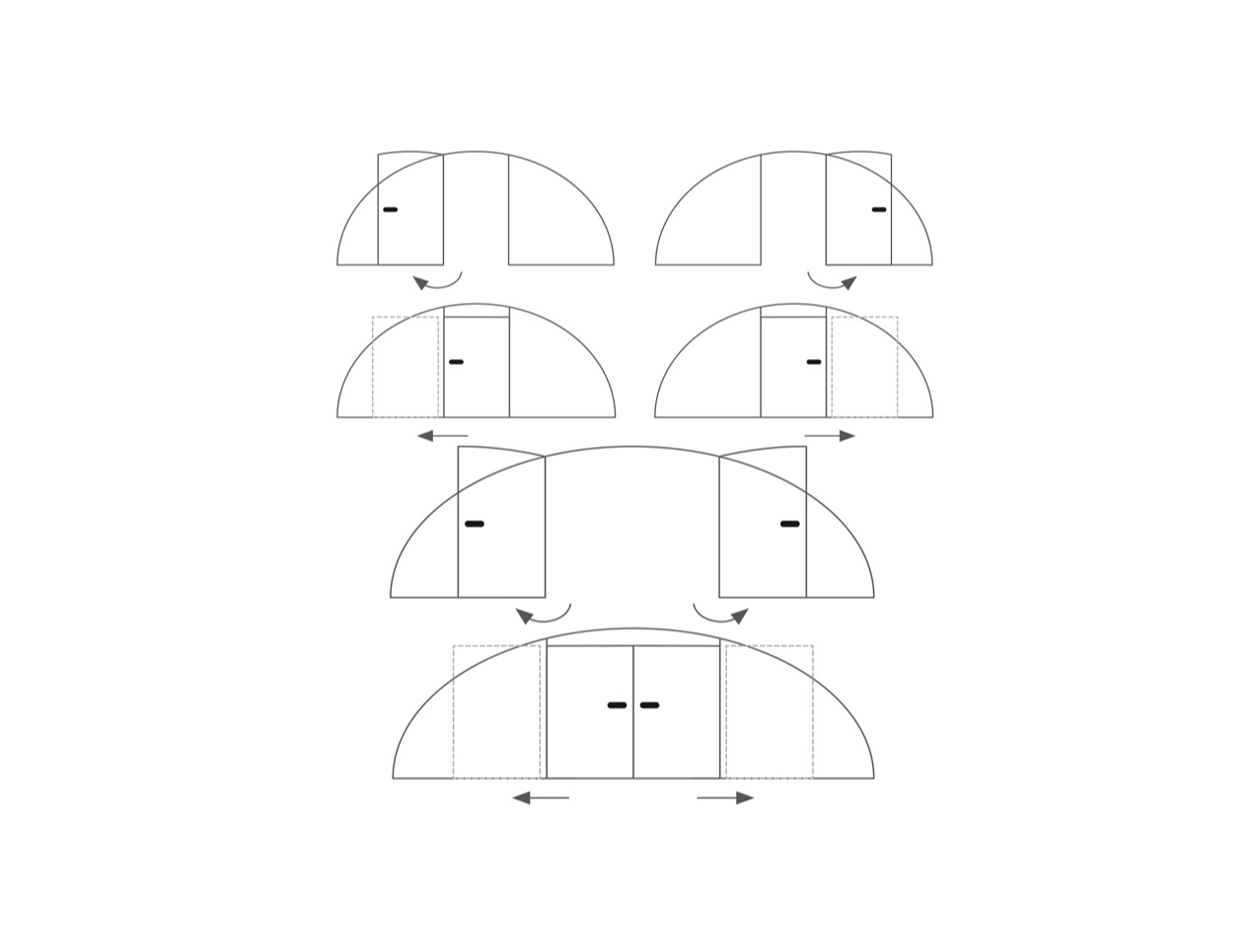

Doors in front/back panels
- Hinged (left, right)
- Sliding (lift, right)
- Double-wing (hinged, sliding)
They can be hinged or sliding. The standard width is 80 cm (2‘7‘‘) for single-wing and 120 cm (3‘11‘‘) for double-wing doors. If the required door width exceeds 90 cm (2‘11‘‘) and 140 cm (4‘7‘‘).
for singledoor and double-wing doors, respectively, we recommend using the sliding variant for better stability.We also recommend sliding doors for higher enclosures. We
do not recommend a door in the front/back panel of the CASABLANCA INFINITY enclosure. If a hinged door is positioned off -centre, the hinges need to be placed on the side of the door closer to the axis. Doors are available in versions with a doorsill or without

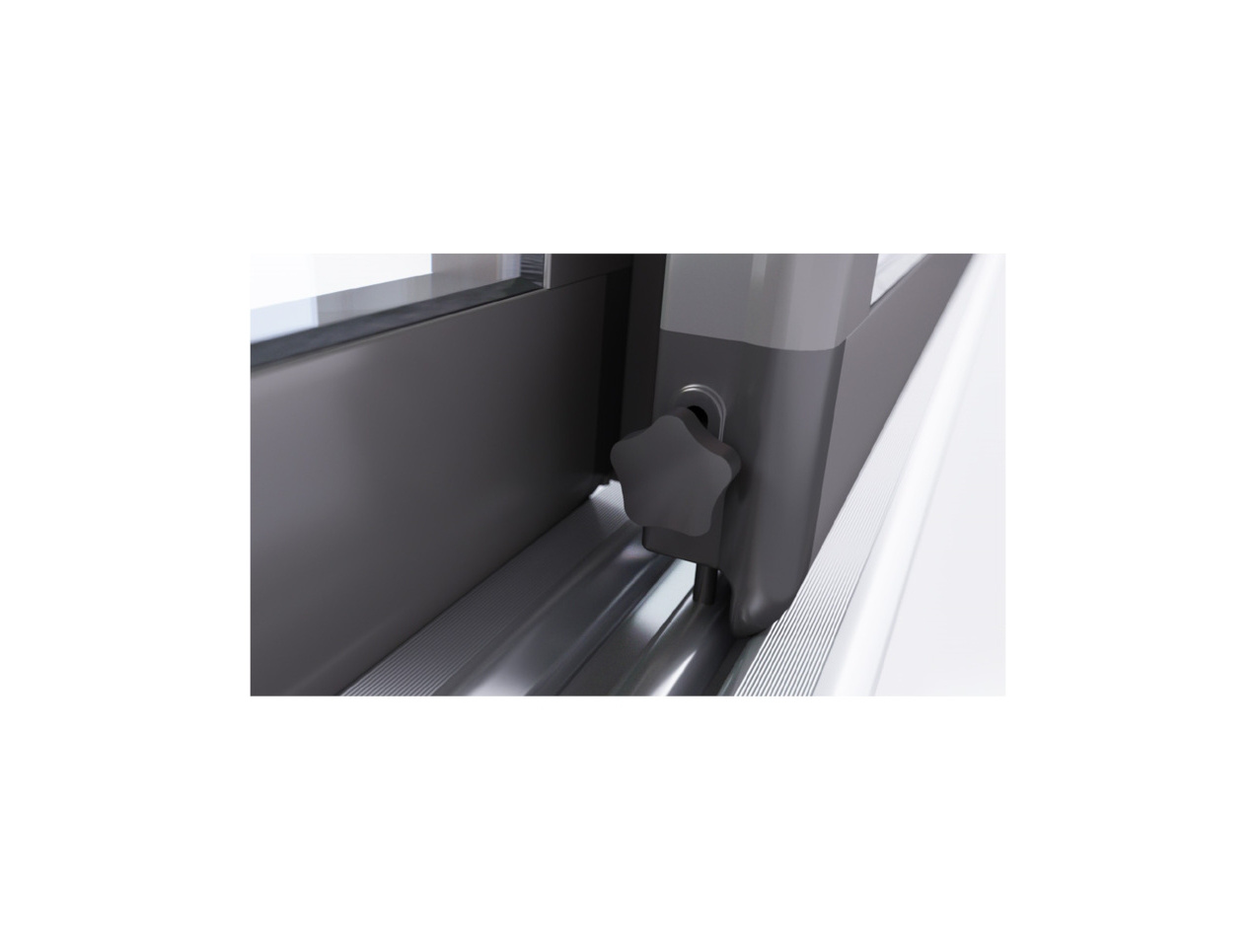

Stoppers
- Non-lockable
- Lockable
As a standard, each module is supplied with two stoppers in its open/close position. For even higher safety, the stoppers can be lockable. The stoppers are controlled from the outside of the enclosure as a standard, except the smallest module where a user can operate the stopper from the inside due to safety reasons - when the user has been locked inside the enclosure he can open the module from there.
Module length
The enclosure modules have a standard length of 219 cm (7‘2‘‘), unless specified otherwise. The recommended module length ranges between 180 and 250 cm (5‘11‘‘ and 8‘2‘‘). We do not recommend any other size in order to preserve smooth enclosure movement. We recommend only standard sizes of the CASABLANCA INFINITY enclosure modules. It might be necessary to add supporting arches to maintain a certified loading capacity when a longer length has been specified.
